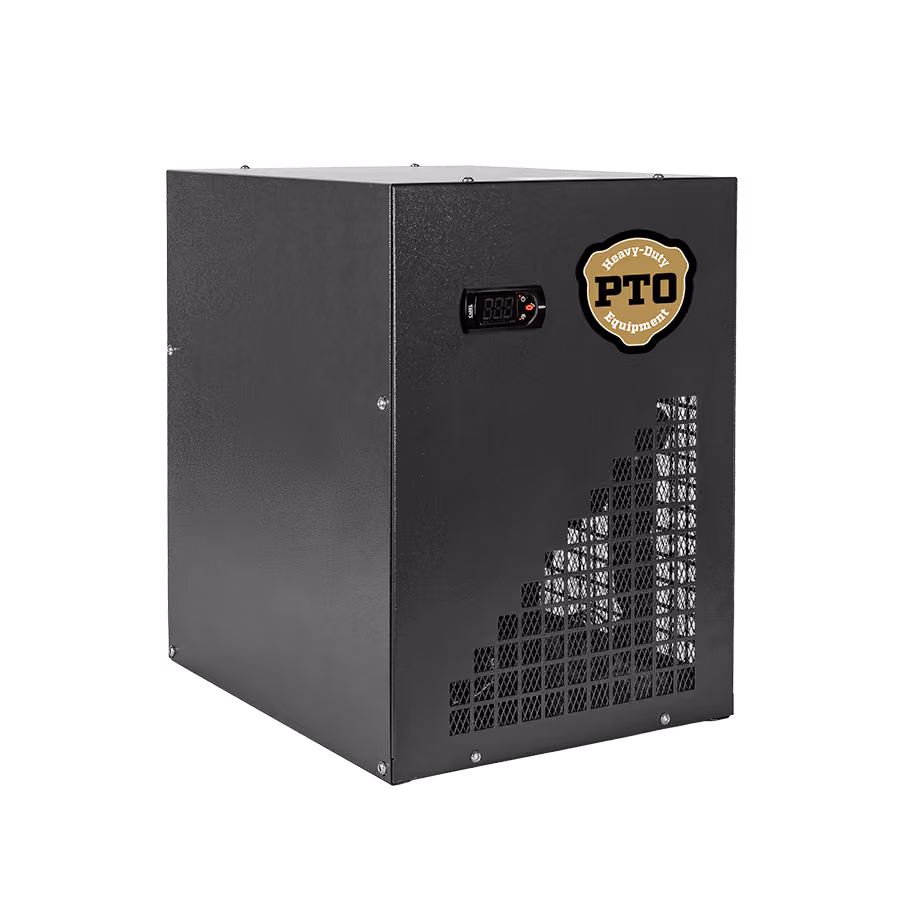

Refrigerated Dryers
Available from 15-300 CFM
Easy to install and operate, just like our air compressors.
Features
- Solid aluminum heat exchanger
- Low pressure drop
- Self cleaning design
- R513A refrigerant
- NPT Connections
- Timed electric auto drain
- Non-cycling class 5
- Class 4 pressure dew point
- Lighted controls simplify servicing and monitoring
- User-friendly control panel for monitoring dew point,operating modes, drain management, and alarm management
- Energy saving operation reduces operating cost
- UL/CSA certified
Models | CFM | Refrigerant | Voltage | Inlet/Outlet Connections | LxWxH (Inches) | Weight (lbs) |
RD15AT | 15 | R513A | 115/1/60 | 3/4" | 12 x 14.7 x 17.3 | 40 |
RD20AT | 20 | R513A | 115/1/60 | 3/4" | 12 x 14.7 x 17.3 | 40 |
RD35AT | 35 | R513A | 115/1/60 | 3/4" | 12 x 14.7 x 17.3 | 42 |
RD50AT | 50 | R513A | 115/1/60 | 3/4" | 13.6 x 16.1 x 18.9 | 53 |
RD75AT | 75 | R513A | 115/1/60 | 1" | 15.7 x 18.2 x 21.3 | 60 |
RD100AT | 100 | R513A | 115/1/60 | 1" | 15.7 x 18.2 x 21.3 | 66 |
RD125AT | 125 | R513A | 115/1/60 | 1" | 15.7 x 18.2 x 21.3 | 88 |
RD150AT | 150 | R513A | 115/1/60 | 1" | 15.7 x 18.2 x 21.3 | 90 |
RD175AT | 175 | R513A | 115/1/60 | 1 1/2" | 21.2 x 21.2 x 26.9 | 121 |
RD220AT | 220 | R513A | 230/1/60 | 1 1/2" | 20.7 x 24.7 x 44.2 | 159 |
RD300AT | 300 | R513A | 230/1/60 | 1 1/2" | 20.7 x 24.7 x 44.2 | 172 |
