10 HP | 16.5 CFM
16.5 CFM @ 175 PSI
18.5 CFM @ 100 PSI
No Start-Up Kit Required
Lifetime Parts Warranty Available

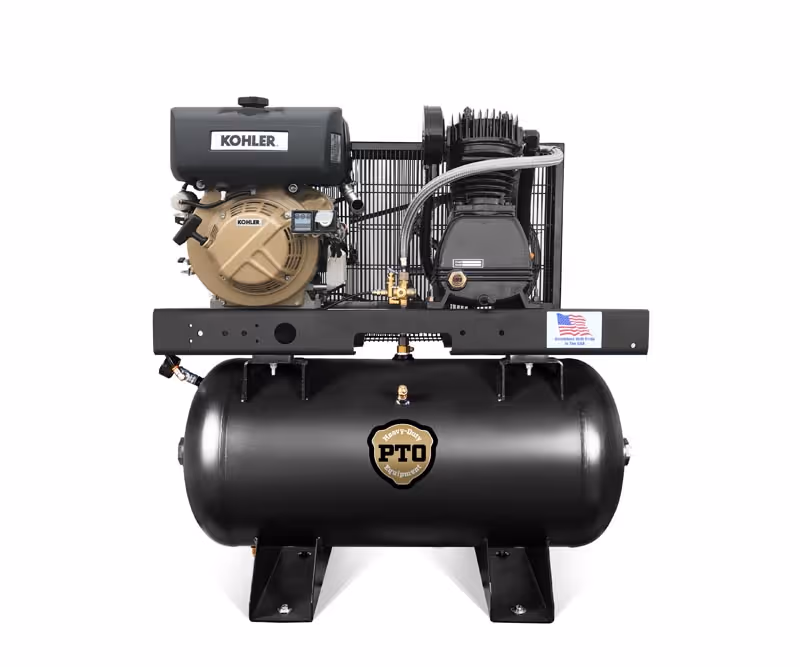

Industrial-grade air compressor powered by a heavy-duty 10 HP Kohler diesel engine with electric start. Featuring the LH4 two-stage pump with reed valves and a solid cast iron construction. Ideal for remote job sites, mobile applications, and locations without electrical power access.
Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership.
The Elite package adds features that make our compressors even easier to use and maintain, while delivering higher quality air.
No items found.
Features
- Heavy-duty two-stage solid cast iron pump
- Industrial-duty engine
- Needle bearings and inserts on rods
- Access to compressor valves without compressor head removal
- Alternator on drive engine
- ASME/CRN certified air receiver
- Bearings on both ends of the crankshaft
- Centrifugal unloader
- Critical controls protected by compressor base plate
- Disc and spring valves
- Drive engine on left side for safety
- Fully enclosed belt guard
- Full saddle mounting feet instead of pegged mounting feet
- Heavy-duty air filter
- Pilot valve continuous operation
- Stainless steel flexible air lines
- Swedish steel valves
- Torrington needle bearings
- 2-groove B width drive pulley
- 2-piece tank/top plate design
Elite Features
- All basic features
- Automatic tank drain
- Belt guard aftercooler
- On-board battery mounted and wired (no truck wiring needed)
- Tank discharge ball valve
- Vibration pads
- Freight prepaid in the 48 states & southern Canada
Models HP Engine Brand Tank L×W×H (in) Weight (lbs)
D1034 10 Kohler Diesel Electric Start 30 Gallon Horizontal 42×22×42 650
Add -E after model number to make Elite Model
