13 HP | 16 CFM
16 CFM @ 175 PSI
5000 Watt Generator
No Start-Up Kit Required
Lifetime Parts Warranty Available

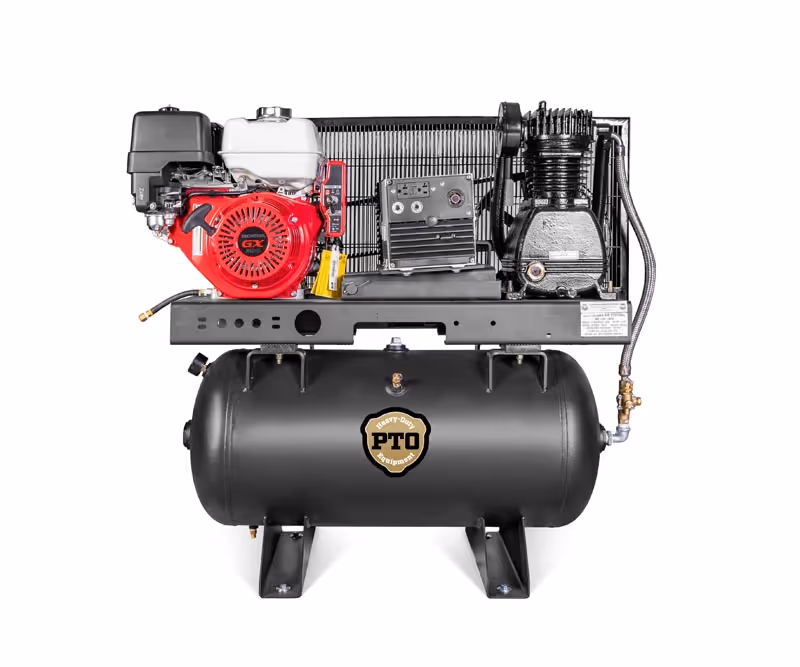

A combination compressor/generator driven by an industrial-grade 13 HP Honda or CRX gas engine with electric start. Featuring the LH4 two-stage pump with reed valves and a solid cast iron construction, and a 5000 Watt generator with 120 and 220 volt outlets. Ideal for remote job sites, mobile applications, and locations without electrical power access.
Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership.
The Elite package adds features that make our compressors even easier to use and maintain, while delivering higher quality air.
Features
- Heavy-duty two-stage solid cast iron pump
- Industrial-duty engine
- Needle bearings and inserts on rods
- Access to compressor valves without compressor head removal
- Alternator on drive engine
- ASME/CRN certified air receiver
- Bearings on both ends of the crankshaft
- Centrifugal unloader
- Critical controls protected by compressor base plate
- Disc and spring valves
- Drive engine on left side for safety
- Fully enclosed belt guard
- Full saddle mounting feet instead of pegged mounting feet
- Heavy-duty air filter
- Pilot valve continuous operation
- Stainless steel flexible air lines
- Swedish steel valves
- Torrington needle bearings
- 2-groove B width drive pulley
- 2-piece tank/top plate design
Generator/Welder Features
- 5000 Watt generator
- 110/220 volt outlets
- 41 amps @ 120 volt
- 20 amps @ 240 volt
Elite Features
- All basic features
- Automatic tank drain
- Belt guard mounted aftercooler
- On-board battery mounted and wired (no truck wiring needed)
- Tank discharge ball valve
- Vibration pads
- Freight prepaid in the 48 states & southern Canada
