5.5 HP | 12 CFM
12 CFM @ 125 PSI
14 CFM @ 40 PSI
No Start-Up Kit Required
Lifetime Parts Warranty Available

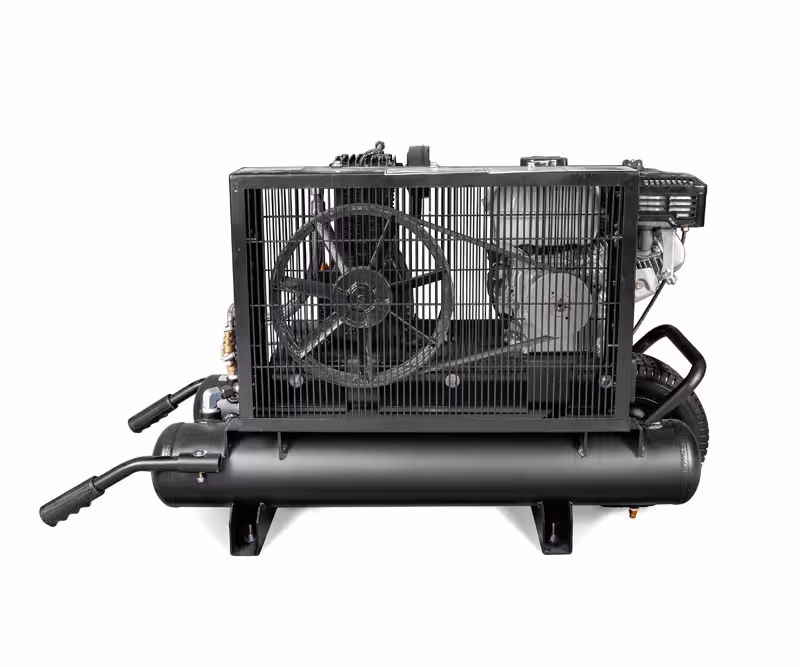

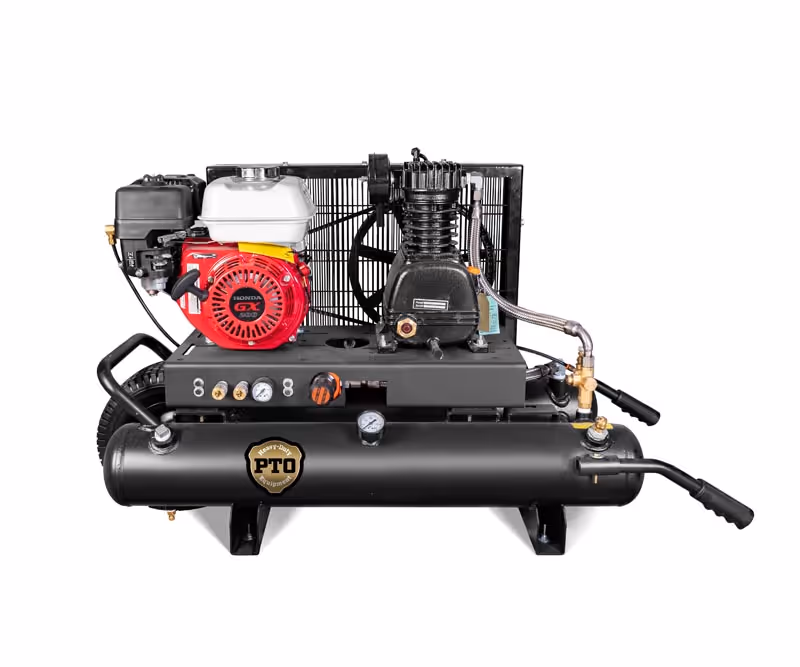

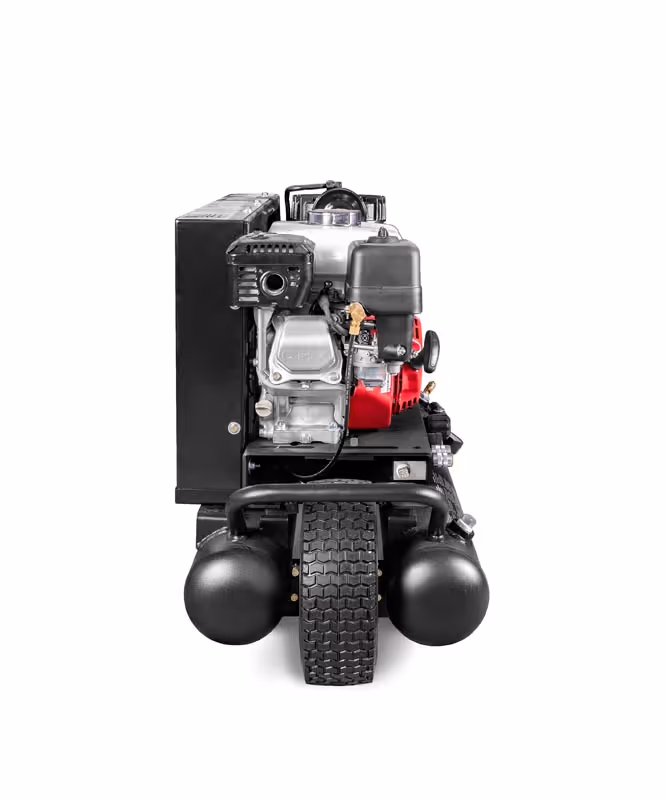

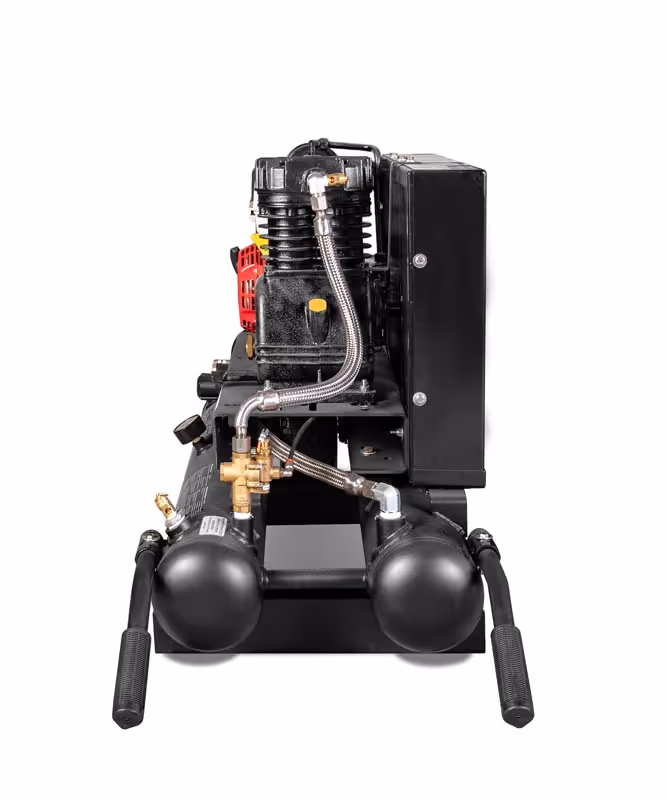

Portable air compressor driven by an industrial-grade 5.5 HP Honda gas engine. Featuring the LH2 single-stage pump with reed valves. Available with 10 or 20 gallon wheelbarrow-style tanks with solid rubber tires and bolt-on handles. Ideal for farms and ranches, mobile applications, and construction sites without electrical power access.
Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership.
Features
- Heavy-duty single stage solid cast iron pump
- Bearings on both ends of the crank shaft
- Low RPM pump
- ASME/CRN certified air receiver
- Heavy-duty air filter
- Industrial grade drive engine
- Needle bearings and inserts on rods
- Stainless steel flexible air lines
- Swedish steel valves
- Torrington needle bearings
- 1-groove A width motor pulley
- Pilot valve continuous operation
- Fully enclosed belt guard
- Heavy-duty lifting handles
- Heavy-duty solid rubber tires
- Low profile design
- Vibration isolation mounts
- 2-piece base tank design
- 1/2” regulator system
- 2 quick air connections
Models | HP | Engine Brand | Tank | LxWxH (Inches) | Weight (lbs) |
H5H101 | 5.5 | Honda | 10 Gallon Portable | 47×19×29 | 275 |
H5H201 | 5.5 | Honda | 20 Gallon Portable | 42×24×40 | 325 |
