5 HP | 18 CFM

18 CFM @ 175 PSI

No Start-Up Kit Required

Lifetime Parts Warranty Available

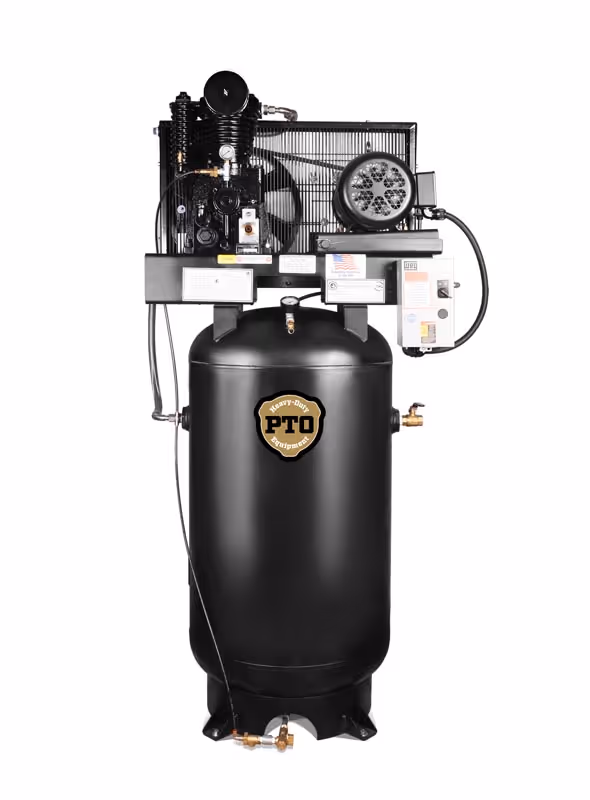

Industrial Duty air compressor driven by an 5 HP electric motor, with a magnetic starter mounted and wired. Featuring the pressure lubricated CA1 two-stage pump with disc and spring valves and a solid cast iron construction. Available with an 80 gallon ASME/CRN certified air receiver, and all UL/CSA electrical controls.

Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership.

The Elite package adds features that make our compressors even easier to use and maintain, while delivering higher quality air.

No items found.

Features


  • Heavy-duty pressure lubricated two-stage solid cast iron pump
  • Disk and spring valves
  • Centrifugal unloader
  • Access to compressor valves without compressor head removal
  • All UL electrical controls
  • ASME/CRN certified air receiver
  • Auto start/stop
  • Bearings on both ends of the crank shaft
  • Fully enclosed belt guard
  • Heavy-duty air filter
  • Industrial grade electric motor
  • Magnetic starter mounted and wired
  • Needle bearings, and inserts on rods
  • Stainless steel flexible air lines
  • Swedish steel valves
  • TEFC drive motor (3 phase only)
  • Torrington needle bearings
  • 2-grove B width motor pulley
  • 2-piece tank/top plate design

Elite Features


  • All basic features
  • Automatic tank drain
  • Belt guard after cooler
  • Low oil monitor
  • Tank discharge ball valve
  • Vibration pads
  • Freight pre-paid in the 48 states & southern Canada
Models
HP
Voltage
Tank
LxWxH (Inches)
Weight (lbs)

51V81P1PL

5

208-230/1

80 Gallon Vertical

36×24×72

750

5V81P3PL

5

208-230/480/3

80 Gallon Vertical

36x24x72

750

Add -E after model number to make Elite Model
