5 HP | 16 CFM | Two-Stage
16 CFM @ 175 PSI
18.2 CFM @ 40 PSI
No Start-Up Kit Required
Lifetime Parts Warranty Available

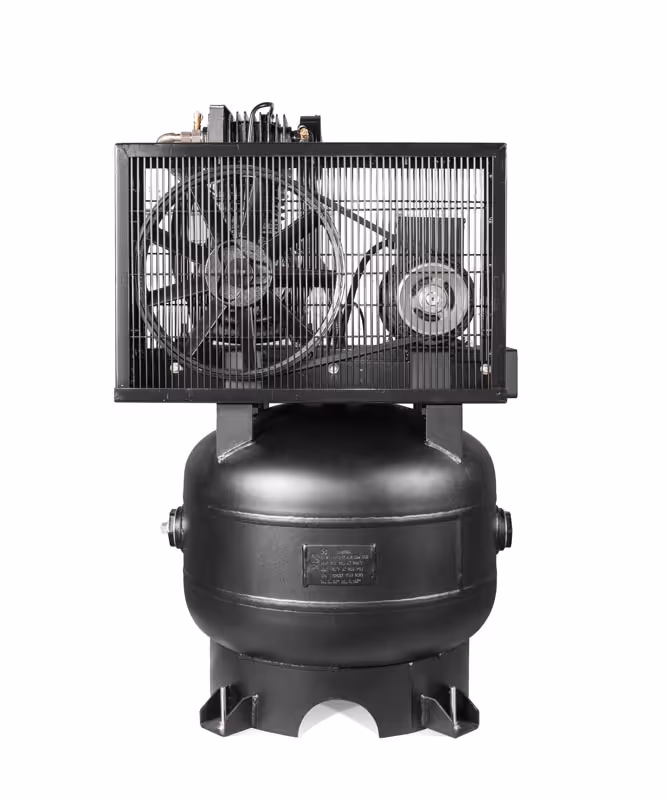

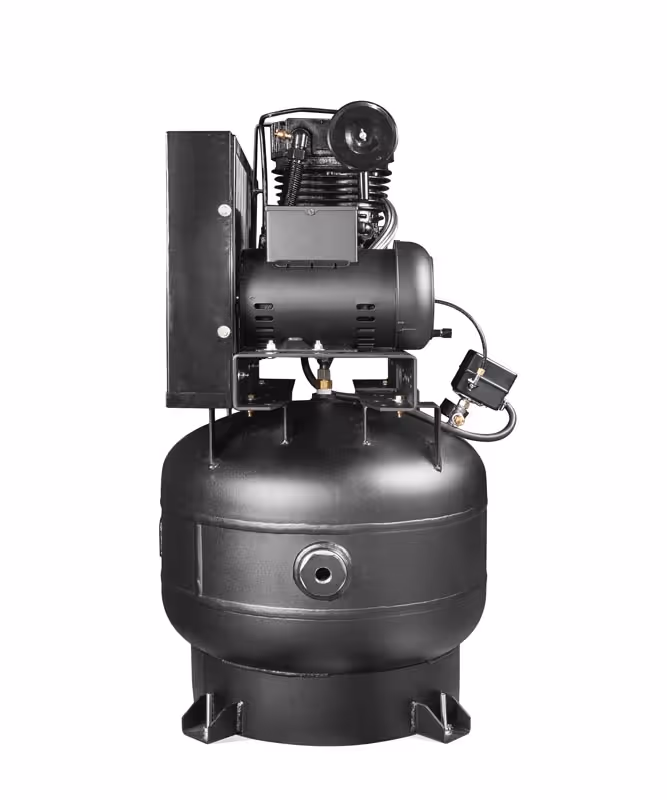

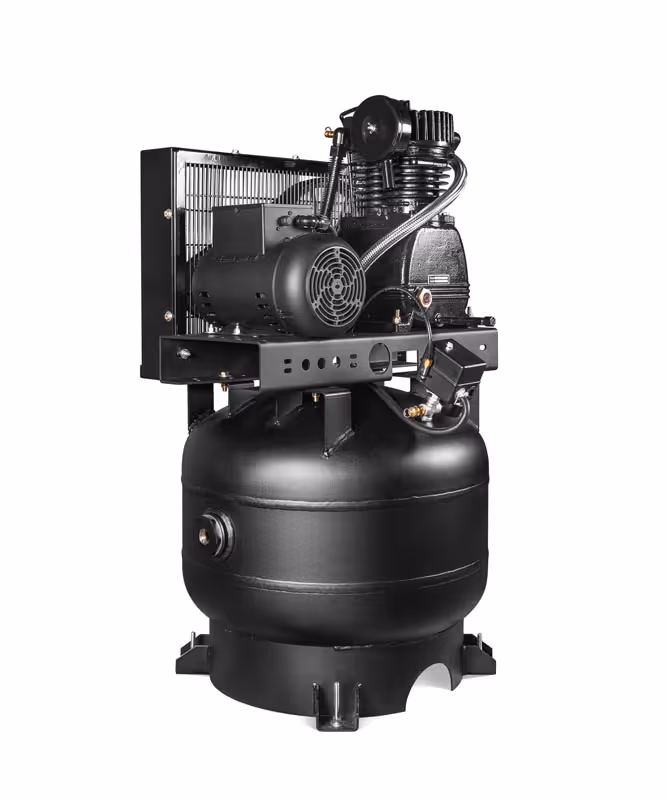

Stationary air compressor driven by an industrial-grade 5 HP electric motor. Featuring the LH4 two-stage pump with reed valves and a solid cast iron construction. Available with a 30, 60, or 80 gallon ASME/CRN certified air receiver, and all UL/CSA electrical controls.
Our compressors are made to be easy to use and maintain, and are built with the most heavy-duty components available. Our unique 2-piece tank/top plate design allows for greater flexibility in repairs, and reduces long-term cost of ownership.
No items found.
Features
- Heavy-duty two-stage solid cast iron pump
- Bearings on both ends of the crankshaft
- All UL electrical controls
- ASME/CRN certified air receiver
- Auto start/stop
- Heavy-duty air filter
- Industrial-grade electric motor
- Needle bearings and inserts on rods
- Stainless steel flexible air lines
- Swedish steel valves
- Torrington needle bearings
- 1-groove A width motor pulley
- 2-piece tank/top plate design
Models HP Voltage Tank L×W×H (in) Weight (lbs)
5V32P1 5 208-230/1 30 Gallon Vertical 27×24×44 525
5V62P1 5 208-230/1 60 Gallon Vertical 27×25×72 525
5V82P1 5 208-230/1 80 Gallon Vertical 29×24×70 525
